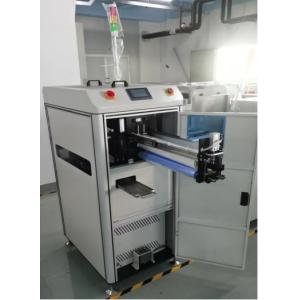

PBC Board Cleaning Machine (Model CHT-QJ-510) MES System & System Width Adjustment

Name: PBC Board Cleaning Machine Model CHTQJ510 MES System amp System Width Adjustment
Price: 1 USD

Model Number : CHT-BGA-1000C

Place of Origin : China

MOQ : NEGOTIATION

Price : NEGOTIATION

Payment Terms : T/T

Supply Ability : 10per day

Delivery Time : 20 work days

Packaging Details : NEGOTIATION

PCB Size : 50*50-590*510mm

PCB Direction of transfer : L-R/R-L

PCB Transport Height : 900±20mm

Material Box Sizes(L*W*H) : 50*80*100-300*150*400

Weight : 170Kg

Boundaty Dimension(L*W*H) : L650*W875*H1250mm

Contact Now

PBC Board Cleaning Machine

First, the characteristics of the equipment:

1 PLC control system

2 control panel for the LED true color touch screen

3 step distance can be divided into four kinds (10,20,30,40mm)

4 with suction and feeding board function

5 with anti-jamming special anti-dull structure

6 direction can be selected from left to right or right to left

Technical parameters and specifications

1 Board loading time approx. 6 seconds

2 Bin change time approx. 20 seconds

3 Power supply and load 100-230V AC (customer specified) single, max. 300 VA

4 Pneumatic pressure and flow rate 4-6 bar, max. 10 liters/min

5 Conveyor height 920±20mm (customer specified)

6 Conveyor direction left-right or right-left (optional)

7 PCB thickness Thinnest 0.4 mm 8 Number of boards 1 upper conveyor, 1 lower conveyor (customer specified) 9 Step selection 1-4 (mm steps)

10 PCB size 50*50-590*510mm 11 Outer type conveyor 50*50-590*510mm mm

8 Number of bins Upper conveyor: 1, lower conveyor: 1 (customer-specific)

9 Step selection 1-4 (mm steps)

10 PCB size 50*50-590*510mm

11 External dimensions (L*W*H) 1835*1060*1700

12 Approximate weight (kg) 245KG
